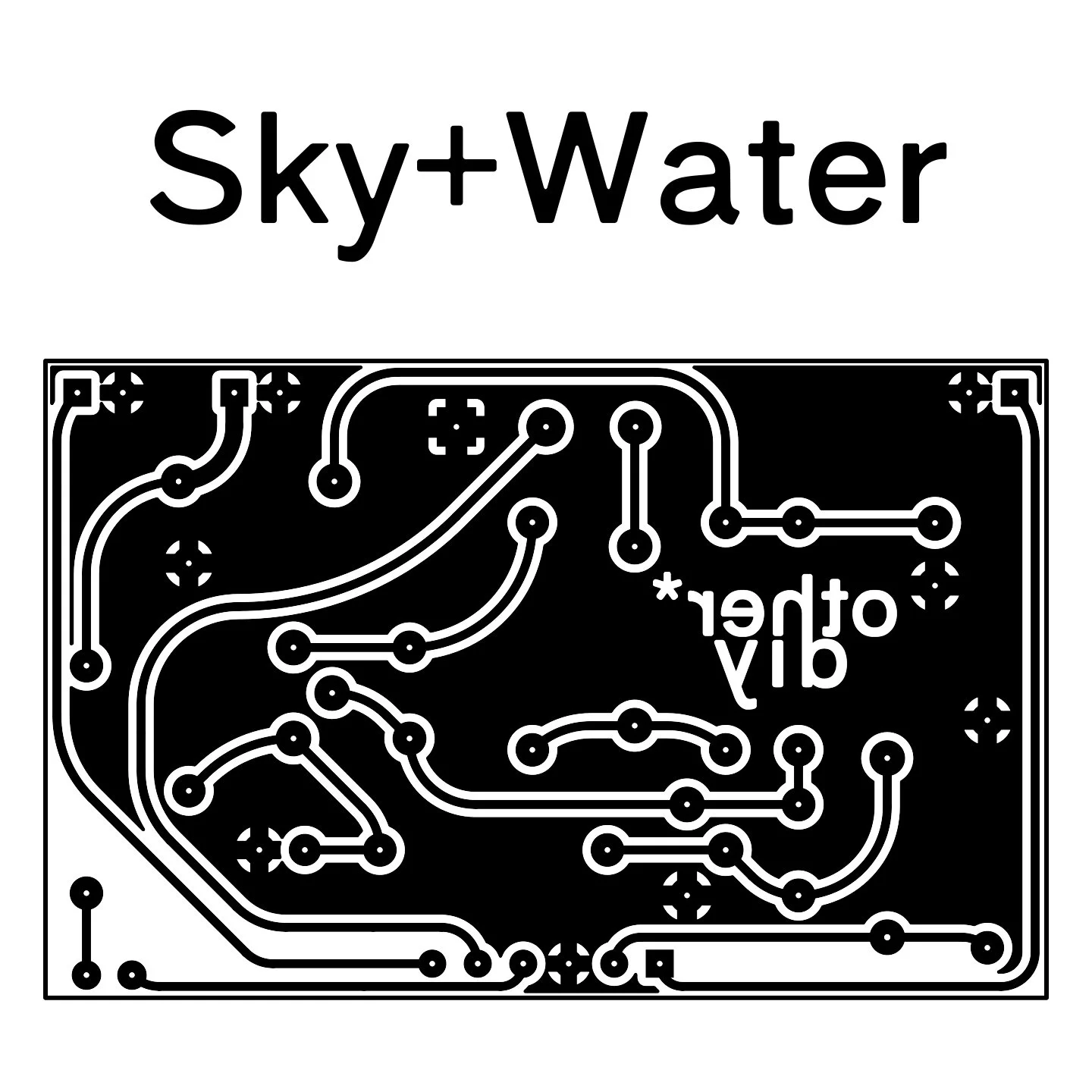

Etch this single-sided PCB to build your own one-knob fuzz in a 125B or larger enclosure. Pad spacing for 1/4w carbon comp resistors and 10mm film capacitors for the two 100n. The electrolytic and ceramic capacitors are modern footprints, see BOM for all part sizing.

You’ll need single-sided copper clad, PCB toner transfer paper and laser printer, ferric chloride, and a Dremel with tiny drill bits. Check out the many YouTube videos on how to do this.

This project is not yet verified.

There is no drill guide provided. Thinking about making some case designs for etching though.

Click below for the build doc with the transfer image. Download the Gerber file if you’d like to order PCBs yourself.
