THE BOOST OF TONE SWAMP: TBN-1
The Bridge: RAT

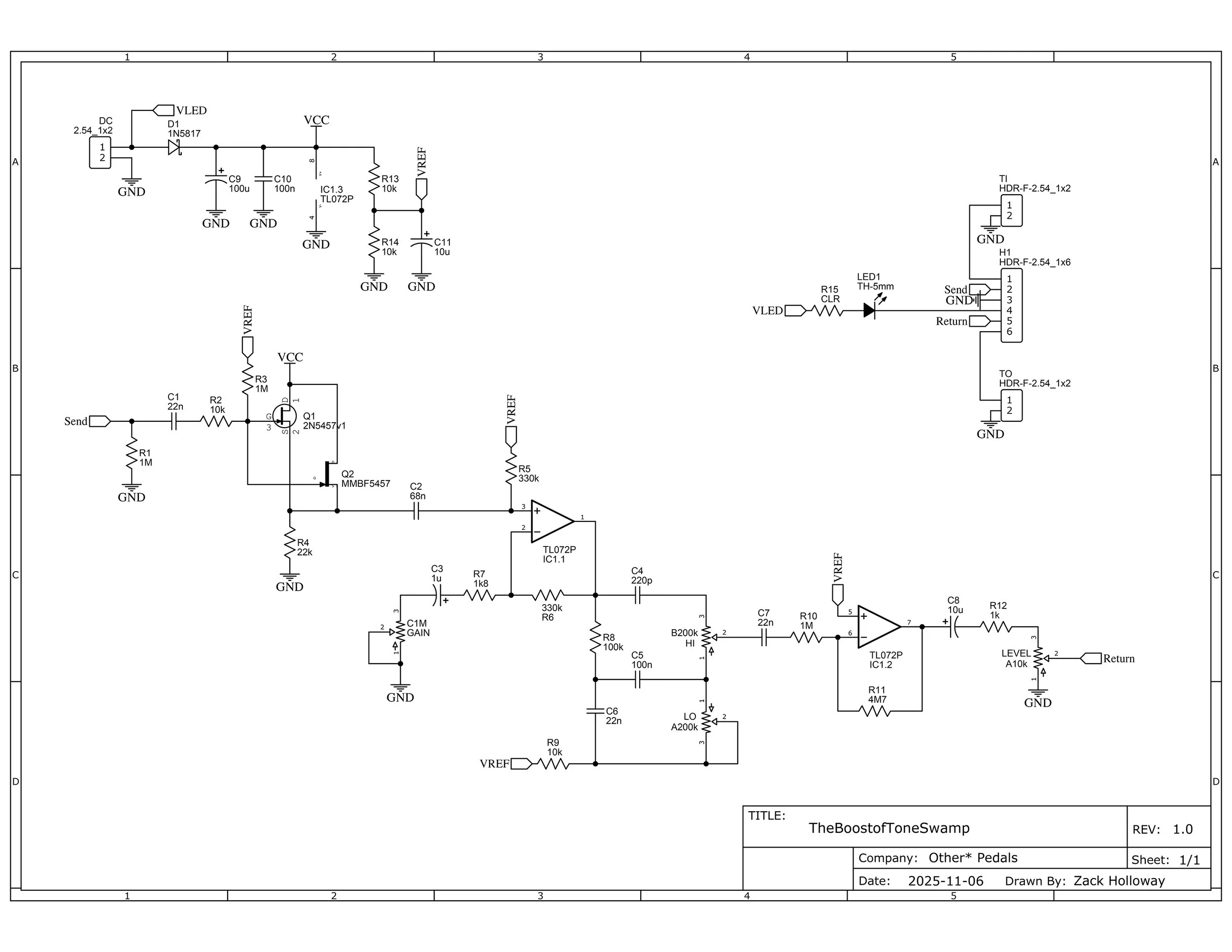

The Boost of Tone Swamp is a clone of the Korg TBN-1 Tone Booster. Part boost/ part eq/ part beast.
Check out a linked video down below. And behold it’s jangly glory.

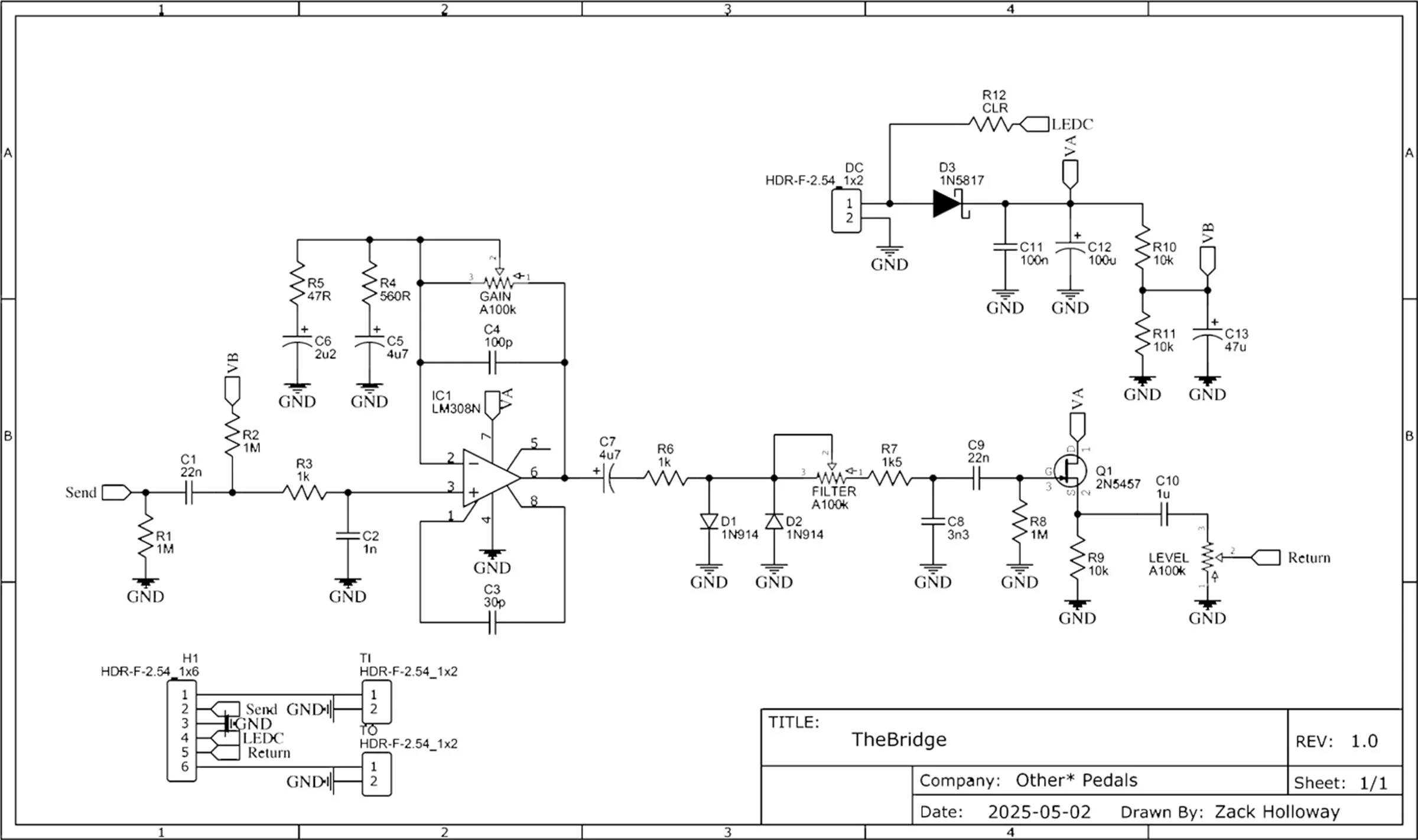

The Bridge is a RAT clone. I’m not going to be able to tell you anything about the RAT that you don’t already know.
There is no LED on the main PCB of this one. There is a current limiting resistor that connects to a pad that reads L+ so you can take power to another bypass daughterboard with and LED footprint or whatever off board wiring you choose. We recommend omitting the bypass LED on this one.
The Boost of Tone Swamp Drill Guides:
The Boost of Tone Swamp Tayda Drill & Print templates:
TAYDA UV PRINT TEMPLATE
The Bridge Drill Guides:
The Bridge Tayda Drill & Print templates:
The Bridge Tayda Drill Template
The Bridge Tayda Print Template
Tayda tutorial:
Make a customer account at taydaelectronics.com
Select a 125B enclosure in whatever color you like.
Add the 125B ENCLOSURE CUSTOM DRILL SERVICE to your cart.
Add the 125B ENCLOSURE FACE UV PRINTING SERVICE to your cart.
Go to the Tayda Box Tool Dashboard and login.
Click the THE BOOST OF TONE SWAMP DRILL TEMPLATE above. Name the template and save.
Download the THE BOOST OF TONE SWAMP TAYDA UV PRINT TEMPLATE above.
Navigate to the UV Print Templates tab in the Tayda Box Tool Dashboard and click: +New UV Template.
Name the UV design.
Select enclosure type 125B.
Select box side Side A/Face.
Check the box: My Design has a CMYK Color.
Check the box: My Design has RDG White Spot Color.
DO NOT select gloss, there is no gloss layer in the art file.
Upload file.
Order the case, etc.
You will need to return to the TAYDA BOX TOOL DASHBOARD and add the drill file and art file to the “JOB” listed under your orders.
Check out the tutorial/instructions provided by Tayda for more info.
