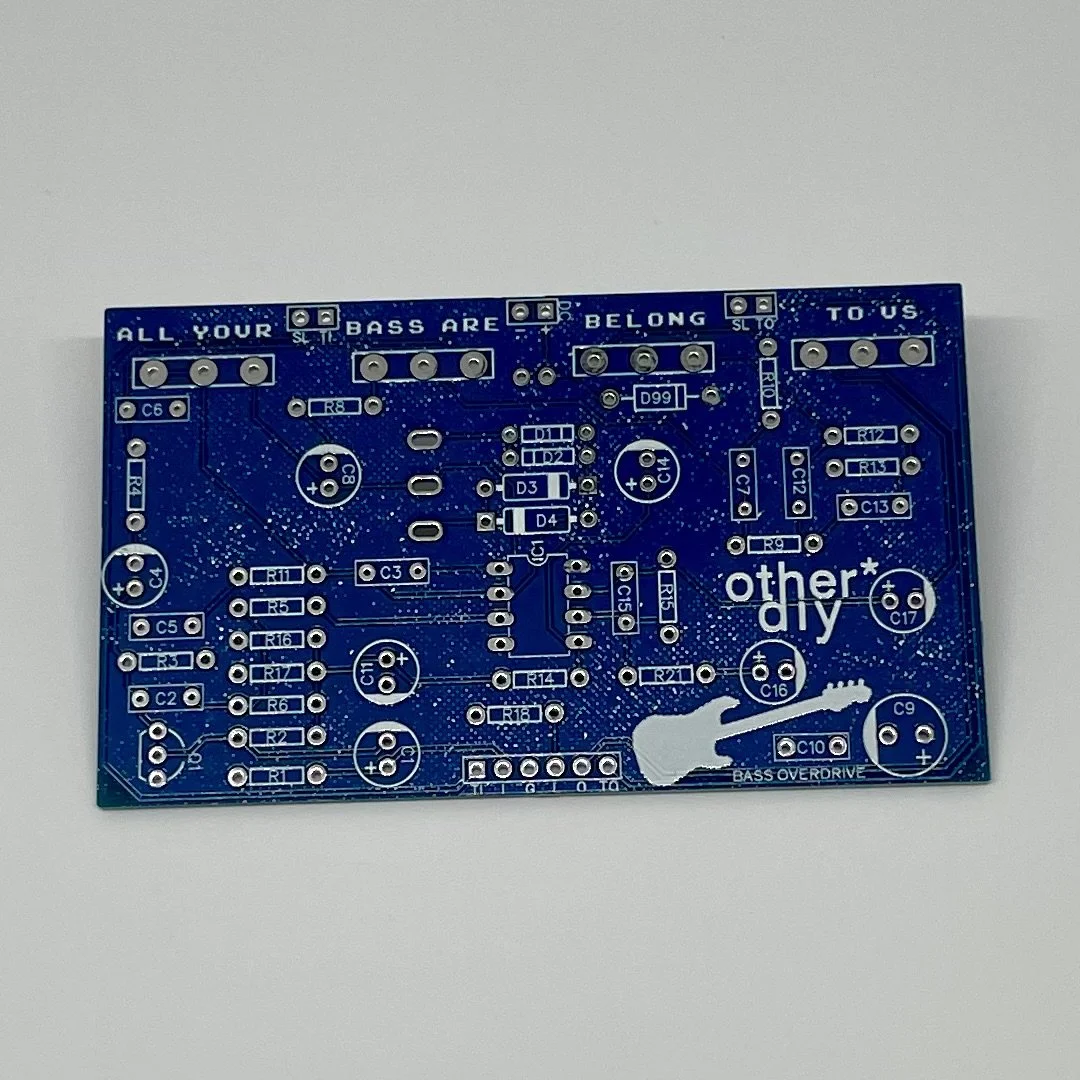

Clone of the DOD FX91 Bass Overdrive with added clipping switch.
The clipping diode footprints on the PCB will allow larger germanium diodes in D3 & D4 if you so choose. D1 & D2 are meant for smaller diodes like 1N914 or 1N4148.
*There is no R7 on the PCB.
Build Guide:
Be sure to grab a 3PDT bypass board here.
Don’t want to do it yourself? Head over to the contact page and message us about building one for you!
