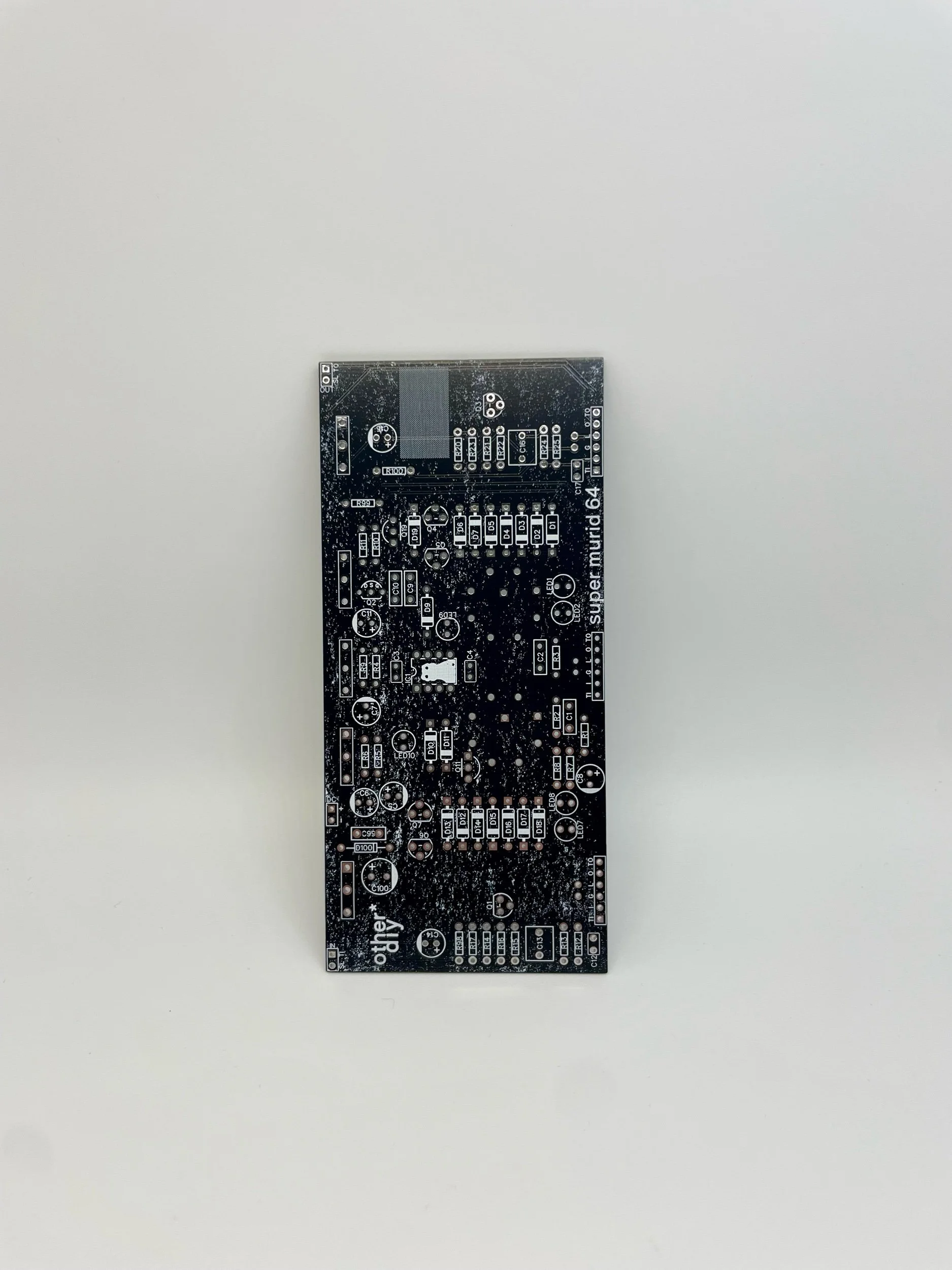

Super Murid 64 PCB

$14.00

Super Murid 64 is a multi RAT. The most versatile RAT imaginable. Sandwiched between two MOSFET boosts is a RAT circuit with selectable hard and soft clipping diodes. Each 1P8T mini rotary switch has 8 options resulting in 64 different clipping diode configurations.

Build Documents:

BOM

Schematic

Drill Guide

Get a 3PDT Bypass Daughterboard here.
